SkyBeam T330 Drone Tethered Lighting System
Portable. Powerful. Precisely Tethered
Imagine a lighting solution that rises above the ordinary. The SkyBeam T330 Drone Tether Lighting System delivers a dazzling 600W of continuous, high-intensity illumination—perfect for emergency rescue, industrial operations, or outdoor events. With one-click takeoff and landing, it's ready to light up any situation.
Rated 5 stars by users
★★★★★
Revolutionizing Aerial Lighting & Surveillance

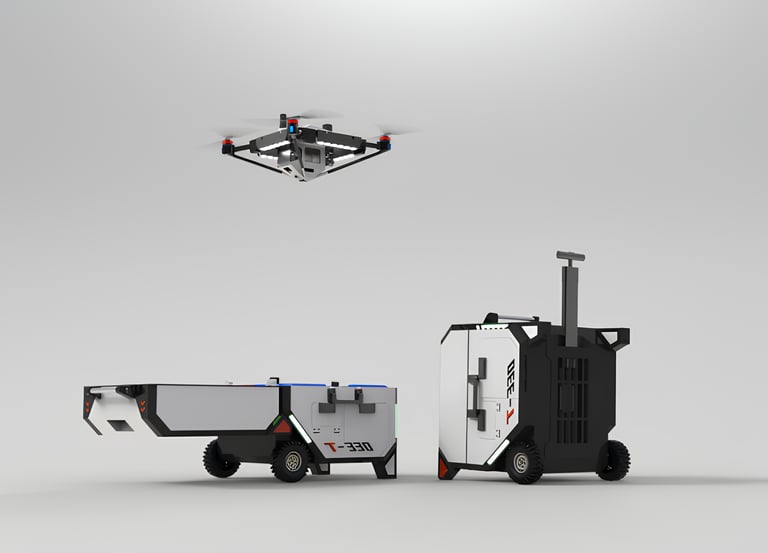

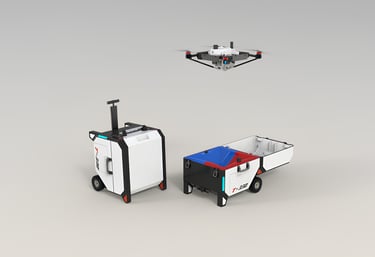

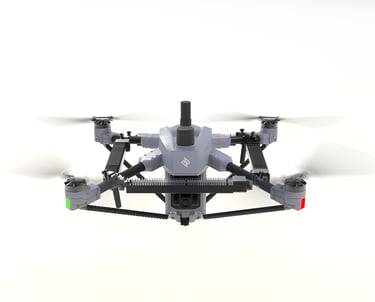

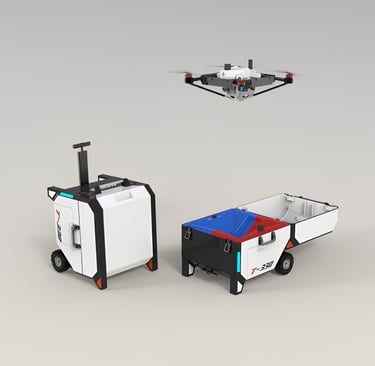

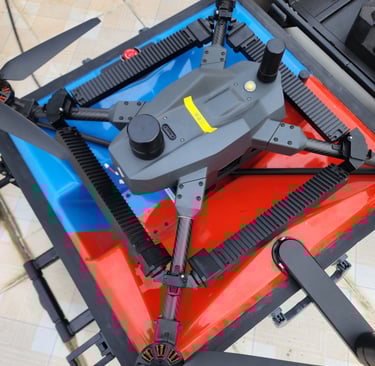

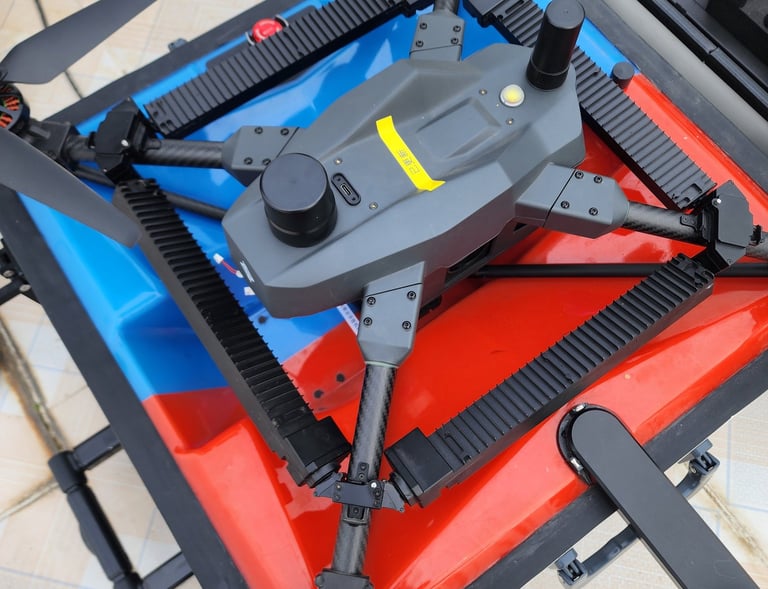

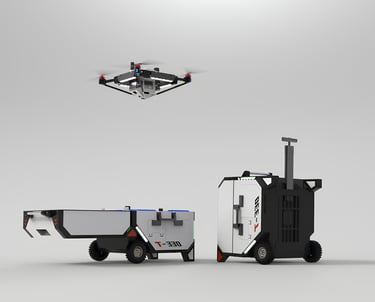

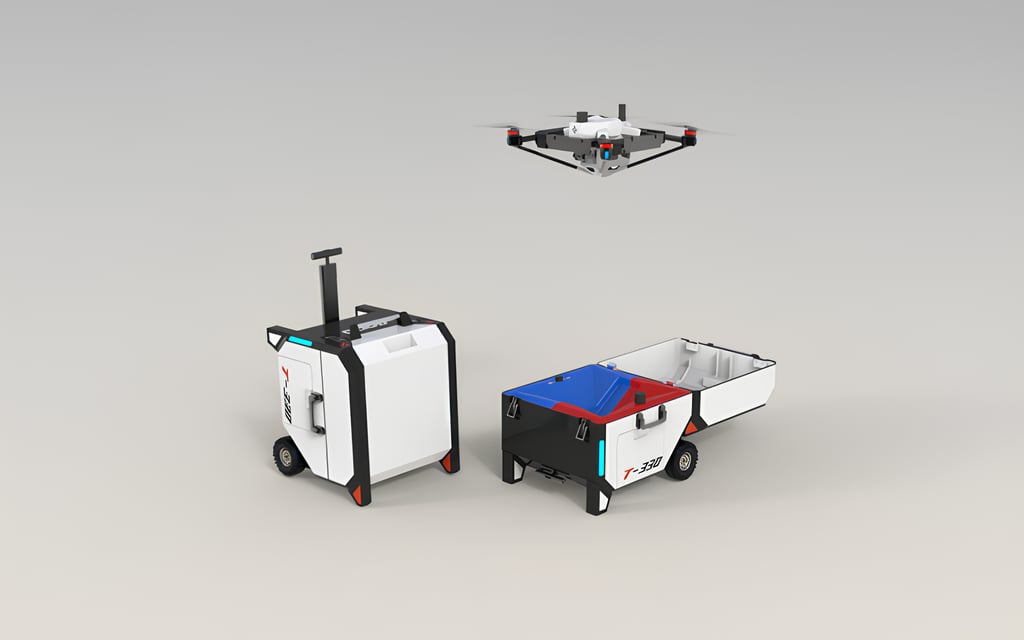

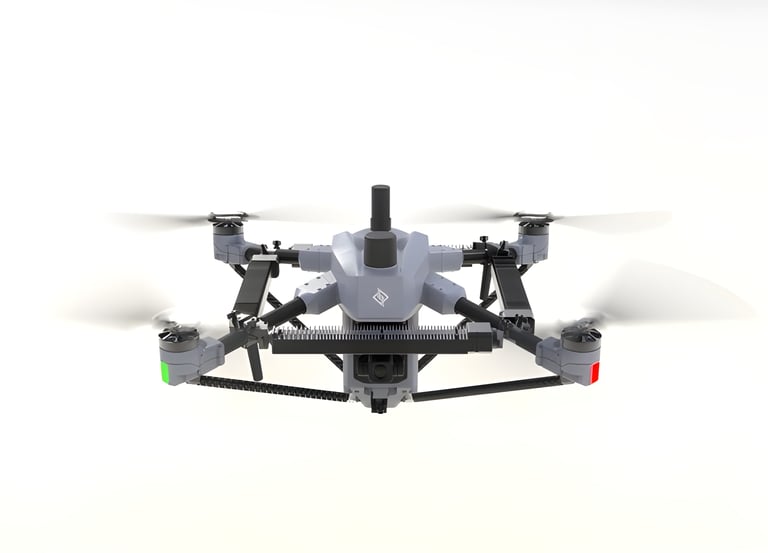

The SkyBeam T330 is a tethered drone system designed for both tethered and free-flight operations. It is equipped with advanced lighting, positioning, and control systems, making it ideal for applications such as emergency response, surveillance, inspection, and event lighting. The system includes a drone, ground dock, controller, and intelligent battery management system.
1. General Features
Weight: 8.5 lbs (3.85 kg)
Flight Modes: Tethered (unlimited runtime) / Free-Flight (45 mins)
Max Altitude: 50m (with lighting/without lighting), 500m (free-flight)
Positioning: Dual RTK (GPS, BeiDou, GLONASS), Visual & Infrared Positioning
Weather Resistance: IP55-rated (dust & water-resistant)
Operating Temperature: -20°C to 50°C
2. High-Intensity Lighting System
Brightness: 96,000 lumens
LED Configuration: 24 ultra-bright LEDs (adjustable beam +90°–35°)
Illumination Area: Covers up to 7,800 sq. m.
Power Consumption: 600W
3. Advanced Payload
Standard Camera: 4K zoom gimbal with 3-axis stabilization
Resolution: 4K @ 30 fps / 2K @ 30 fps
Zoom: 6x digital
Infrared Imaging: 640 × 512 resolution with 2x digital zoom
Temperature Measurement: -20°C to +550°C
Payload Weight: 197g (IP53-rated)
4. Battery & Power
Tethered Battery: 4000mAh (6 mins backup)
Free-Flight Battery: 14000mAh (45 mins flight time)
Charging Time: 90 mins (full) / 50 mins (20%-90%)

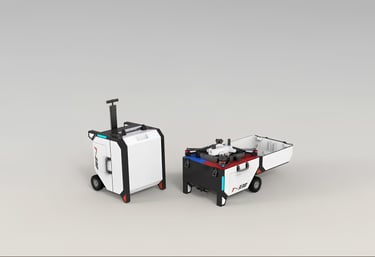

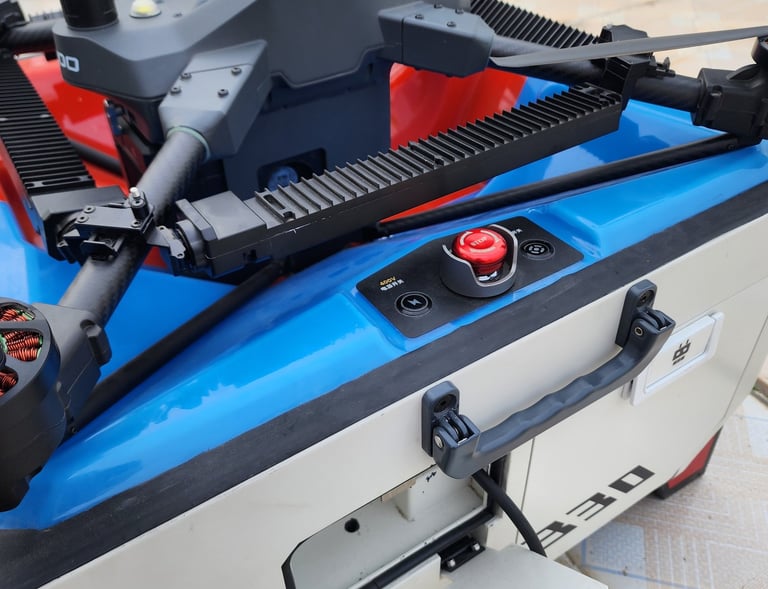

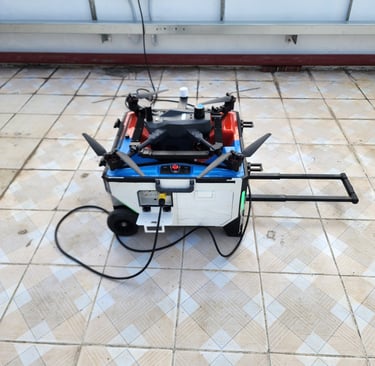

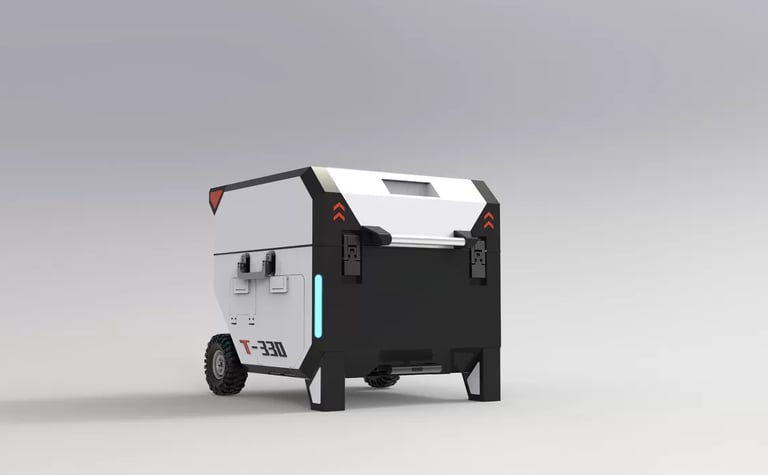

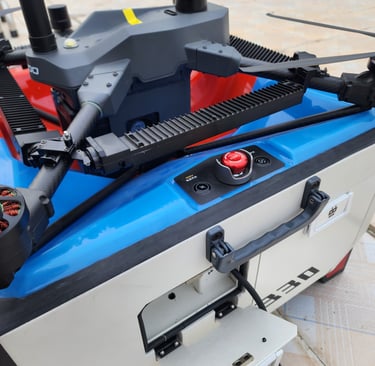

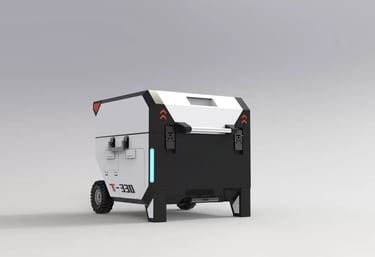

5. Ground Docking Station
Power Supply: 220V AC input / 400V DC, 1500W output
Winch System: Auto cable tension adjustment
Backup Power: UPS switch for continuous operation

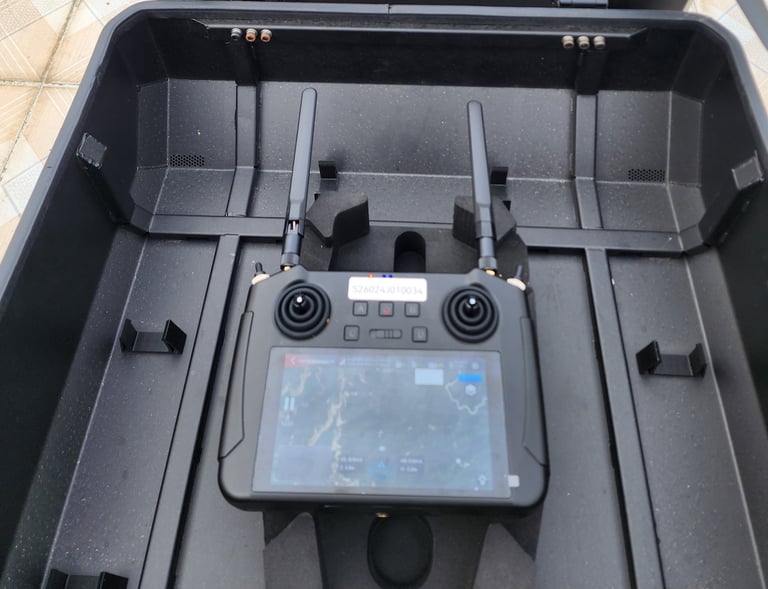

6. Smart Controller (MK15)
Display: 5.5-inch 1080p touchscreen
Battery Life: 13 hours
Communication Range: 15 km (unobstructed)
Weather Resistance: IP53-rated
Interfaces: HDMI, USB-A, Type-C, SIM, TF card slot
The SkyBeam T330 delivers unmatched endurance, precision, and high-intensity lighting, making it ideal for security, disaster response, and industrial applications
🔥 Unmatched Brightness: 96,000 lumens of ultra-high-intensity illumination—bright enough to turn night into day!
🔋 Unlimited Runtime: Operate non-stop in tethered mode or fly freely for 45 minutes with its high-capacity battery.
🎯 Precision Lighting: Adjustable beam angle (+90°–35°) and 7,800 sq. m. coverage for versatile lighting applications.
🌦 All-Weather Performance: Built to withstand tough conditions with IP55-rated durability and an operating range of -20°C to 50°C.
📡 Next-Level Control: Dual RTK positioning, 15 km range controller, and real-time video & infrared imaging for enhanced situational awareness.
⚡ Plug & Play Power: Automated winch system, backup battery, and seamless 220V integration ensure continuous operation.
🔎 Versatile Applications: Ideal for disaster response, search & rescue, industrial inspections, security, and event lighting.
The SkyBeam T330 is not just a drone—it’s a game-changing aerial lighting system for professionals who demand uncompromising performance! 🚀✨
"Why the SkyBeam T330 is the Ultimate Lighting Solution."

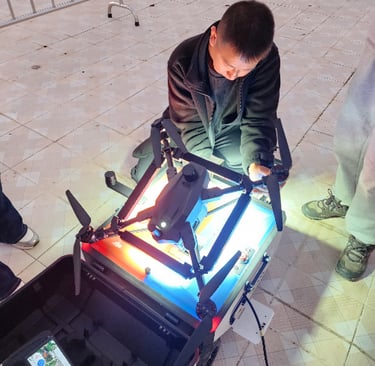

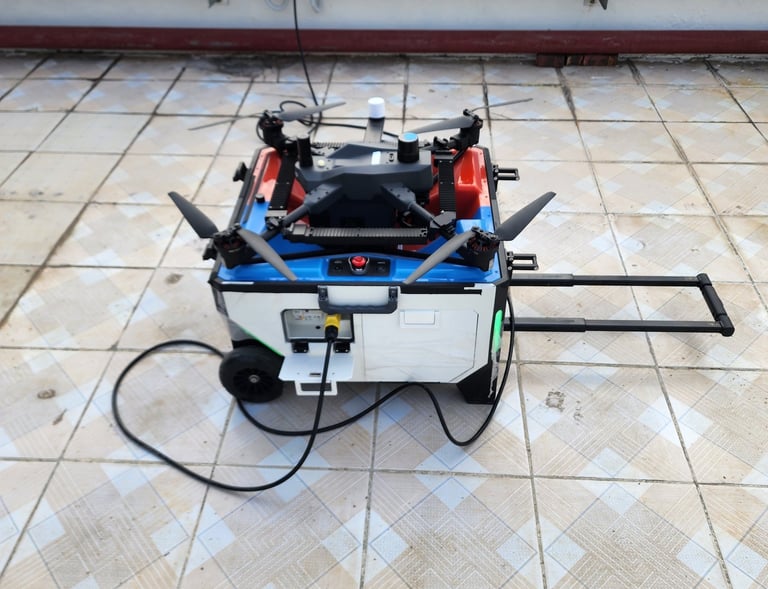

Gallery

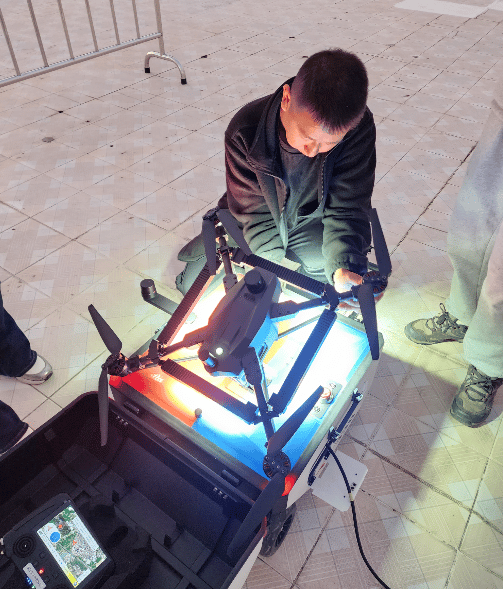

Explore our innovative tethered drone system in action.
