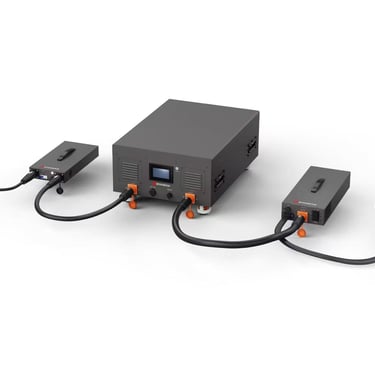

Why Choose Omnira 215?

✅ Ultra-Fast Charging – Full charge in 5 hours (220V) or 2 hours with EV DC fast charging.
✅ Cost-Efficient – Save up to 90% on charging costs compared to gasoline generators.
✅ Eco-Friendly & Silent – Zero emissions, low noise, and maintenance-free operation.
✅ Reliable & Durable – 3,000+ charge cycles, 2-year warranty, and $3M insurance coverage.
✅ Advanced Protection – Over-current, over-charging, under-voltage, over-temperature safeguards.

Technical Specifications

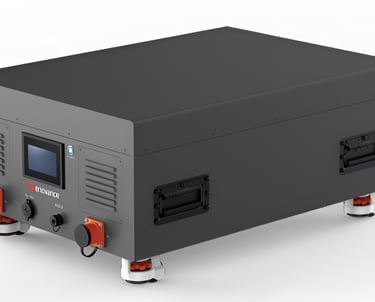

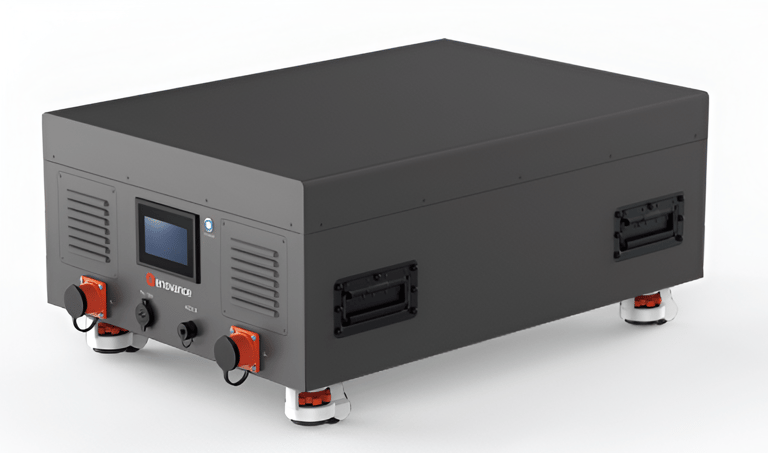

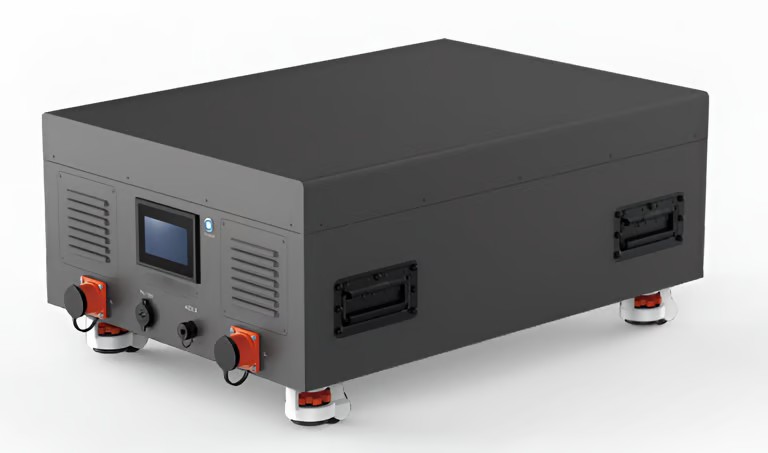

Omnira 215 (Battery Pack)

• Cell Technology: LiFePO4

• Dimensions (L×W×H): 820×580×295mm

• Package Size (L×W×H): 1300×730×540mm

• Net Weight: 174.5 kg

• Nominal Capacity: 280Ah

• Nominal Energy: 21.5kWh

• Battery Group Mode: 1P24S

• Nominal Voltage: 76.8V

• Max Charge/Discharge Current: 200A

• Cycle Life: ≥3000 cycles

IBC6000W (AC-DC Charger)

• Power: 6kW

• Input Method: L+N+PE

• Cooling Method: Air cooling

• Ingress Protection: IP20

• Operating Altitude: ≤3000m

• Operating Temperature: 0-50℃

• Dimensions (L×W×H): 450×223.4×66.2mm

• Net Weight: 8.5 kg

• Rated Input Voltage: 220Vac

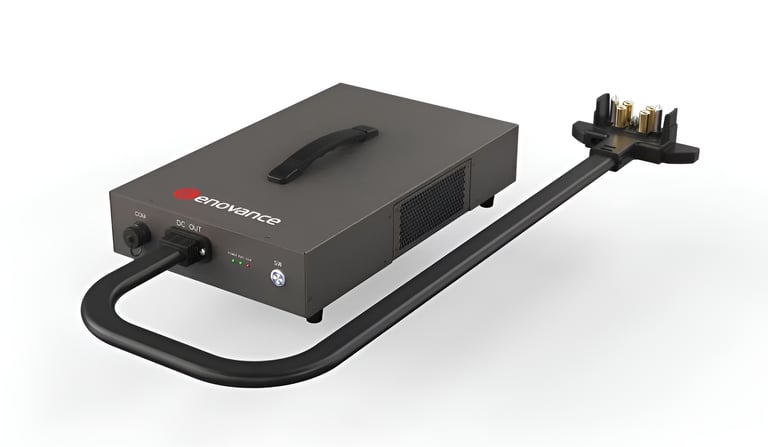

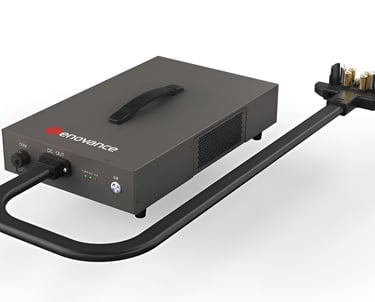

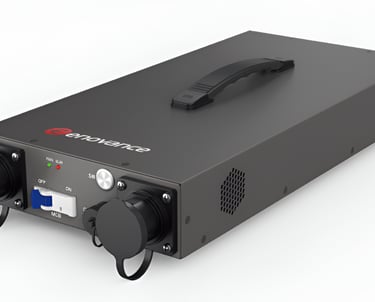

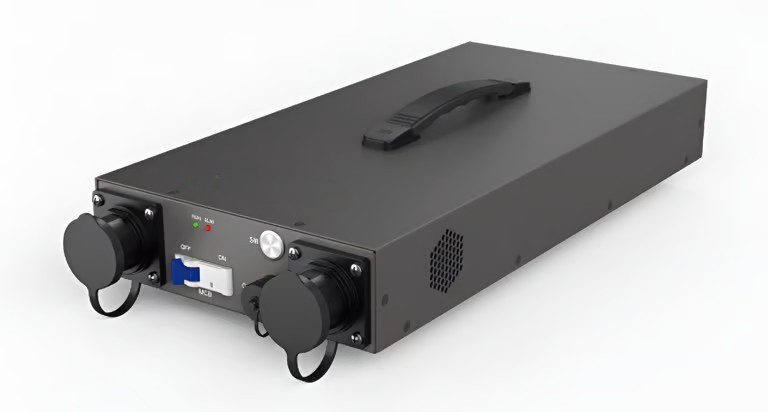

IBC10000W (DC-DC Charger) for DJI

• Power: 10kW

• Dimensions (L×W×H): 550×230×94.5mm

• Net Weight: 14.5kg

• Cooling Method: Air cooling

• Ingress Protection: IP20

• Operating Altitude: ≤3000m

• Operating Temperature: 0-50℃

• Input Voltage Range: 65Vdc-100Vdc

• Output Voltage Range: 0.5Vdc-58.8Vdc

• Output Current: 0 - 180A (Default 150A)

CM15300D (DC-DC Charger) for XAG

• Model: M2CM15300DA

• Output Power: 5000W (5kW)

• Number of Output Plugs: 1

• Input Voltage: 60-100V DC

• Output Voltage: 56.6V DC

• Output Current: 100A

• Operating Temperature: -20°C to 40°C

Key Features

• Efficient & Time-Saving:

  • Fully charges the O-Power 21 Battery Pack in just 5 hours with 220V mains power, or 2 hours with an EV DC fast charger.

  • Charges drone batteries in 10 minutes.

• Worry-Free & Reliable:

  • 3000 cycles warranty with a two-year warranty for non-man-made faults.

  • Accidental spontaneous combustion insurance up to $3 million.

• Silent & Zero Pollution:

  • No noise pollution and no maintenance required.

• Economical & Affordable:

  • 90% reduction in charging costs compared to traditional gasoline generators.

Package Option

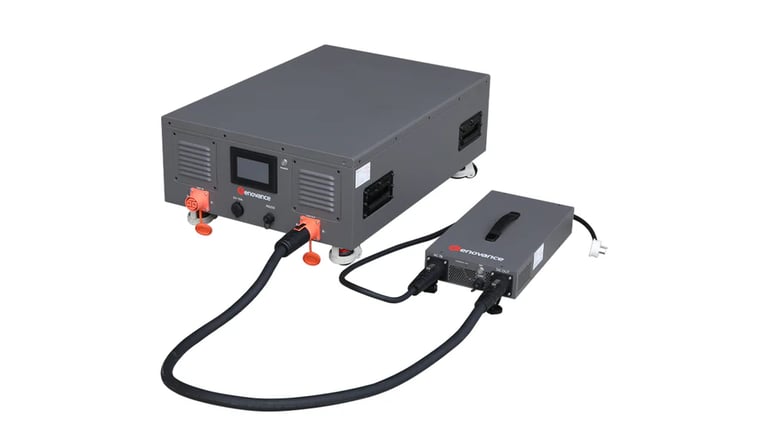

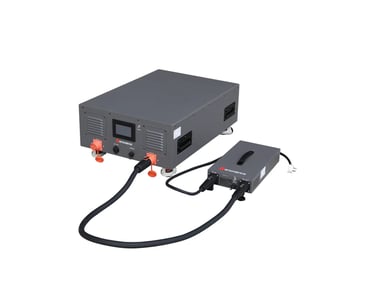

Basic Package :

• Omnira 215 Battery Pack × 1

• IBC6000W AC-DC Charger × 1

• AC-DC Input Cable × 1

• User Manual × 1

• Warranty Card × 1

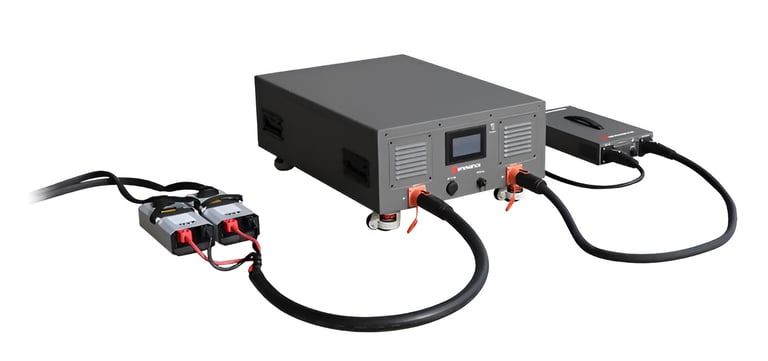

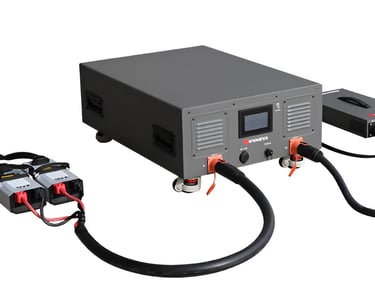

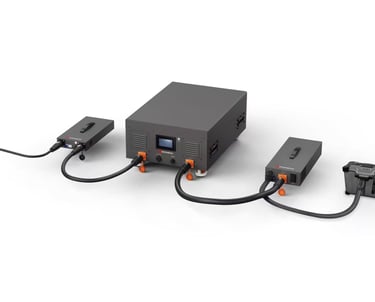

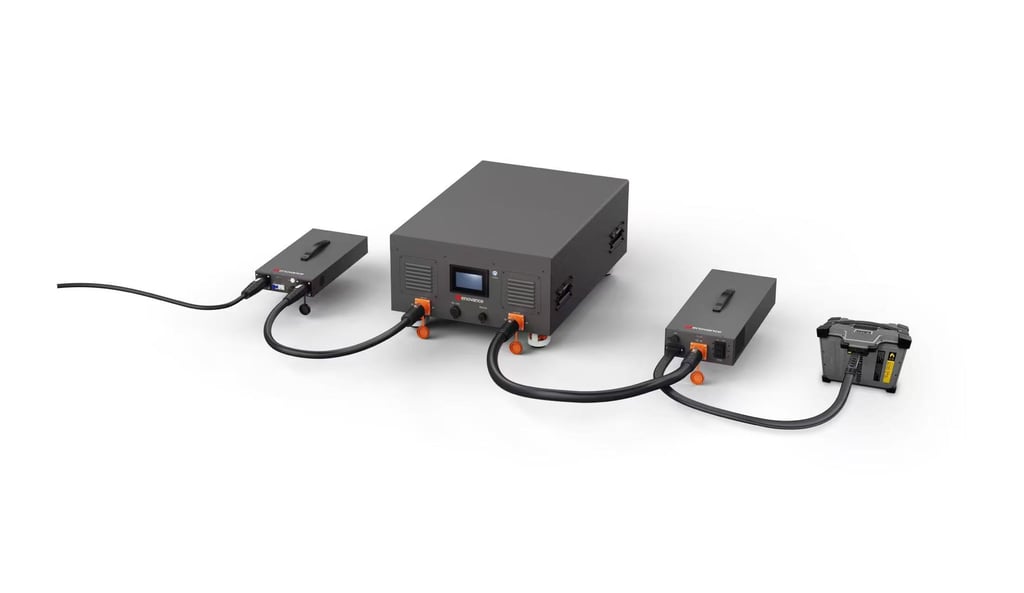

DJI Package :

• Omnira 215 Battery Pack × 1

• IBC6000W AC-DC Charger × 1

• IBC10000W DC-DC Charger × 1

• AC-DC Input Cable × 1

• DC-DC Input Cable × 1

• User Manual × 1

• Warranty Card × 1

XAG Package :

• Omnira 215 Battery Pack × 1

• IBC6000W AC-DC Charger × 1

• CM15300D DC-DC Charger × 1

• AC-DC Input Cable × 1

• DC-DC Input Cable × 1

• User Manual × 1

• Warranty Card × 1

Maintenance Tips

• Regular Cleaning: Clean the fan dust cover to ensure proper cooling.

• Storage: Store the battery at 10°C – 40°C for optimal lifespan.

• Long-Term Storage: Charge and discharge the battery every 3 months.

Applications

• Agriculture: Crop spraying, monitoring, and fast drone charging.

• Construction: Site surveying and remote power for off-grid operations.

• Emergency Response: Search, rescue, and disaster assessment.

• Environmental Monitoring: Wildlife tracking and forestry management.

• Military & Defense: Surveillance, reconnaissance, and logistics.

• Media & Events: Aerial filming and live broadcasting.

• Research & Development: Scientific studies and prototyping.

• Portable Power: Cameras, sensors, and mobile workstations.
